Database Systems

Data vs Information

Data: is the raw unprocessed strings, numbers, dates, measurements, etc. that is simply stored.
Data is raw, unorganized facts that needs to be processed. (date of birth, grade, course)

Information: reveals the meaning of data and is produced through the processing of the data into meaningful output, summations and categorizations. (Persons Age, Average student Age, Average student mark, Students GPA)

Before the Advent of Database Systems

File-based Systems

It refers to the way data is managed or stored before databases are used.

One way to keep information on a computer is to store it in permanent files

You create a series of folders and files to store the information in a way that makes sense to you.

Disadvantages of the file-based approach

Data Redundancy

Data that is stored in more than one location has inherent problems.

can lead to:

Inconsistency in data format
The same info being kept in several different places (files)
Data inconsistency, a situation where various copies of the same data are conflicting, wastes storage space and duplicates effort

Data Repetition

Data that is stored in one location, but repeated many times also has enherent problems.

*The solution to both Data Redundancy and Data Repetition is centralizing the files in one location and allowing each department or request to access the data from a single central source.

More Disadvantages

Data Isolation

is a property that determines when and how changes made by one operation become visible to other concurrent users and systems. This issue occurs in a concurrency situation.

difficult for new applications to retrieve the appropriate data, which might be stored in various files.

Integrity problems

It refers to the maintenance and assurance that the data in a database are correct and consistent.

Data values must satisfy certain consistency constraints that are specified in the application programs.
difficult to make changes to the application programs in order to enforce new constraints.

Security problems

There are constraints regarding accessing privileges.
Application requirements are added to the system in an ad-hoc manner so it is difficult to enforce constraints

Concurrency access

is the ability of the database to allow multiple users access to the same record without adversely affecting transaction processing.

Typically, in a file-based system, when an application opens a file, that file is locked.

In database systems, concurrency is managed thus allowing multiple users access to the same record.

Data Anomalies

There are 3 main types of data anomalies that can occur in a database:

Modification Anomalies
when changing one records data leaves another records data in error.
Insertion Anomalies
when some poece of data or attribute is missing but when we try to insert data
Deletion Anomalies
the removal would result in the loss of data stored in this table. Therefore, other independent fields may actually impact each other due to data.

Databases

A database is a structure that contains logically related data in a single repository.

Through careful design and development a database can be a centralized storage facility that is accessed simulataneously by several departments and if one peice of data is updated, it is autmoatically updated everywhere as it is centralized and unique.

A database can contain many tables.

Benefits

elimination of data redundancy
elimination of data repetition
storing great amounts of data with little to no physical space requirements
tactical and strategic decision support
supporting and feeding day to day business operations through production and transactions.
ability to get more information from the same amount of data through relations
sharing of data
security of data to authorized users (give read-only/read and write privileges)
enforcement of integrity constraints (data type - numbers only, data uniqueness)
data independance (the system data descriptions or data describing data (metadata) are separated from the application programs)
software independence (can restructure database without requiring updates to the software)
backup and recovery facilities

Self-describing nature of a database system

A database system is referred to as self-describing because it not only contains the database itself, but also metadata which defines and describes the data and relationships between tables in the database.

This separation of data and information about the data makes a database system totally different from the traditional file-based system in which the data definition is part of the application programs.

Insulation between program and data

In the database approach, the data structure is stored in the system catalogue and not in the programs. Therefore, one change is all that is needed to change the structure of a file. This insulation between the programs and data is also called program-data independence.

Support for multiple views of data

A view is a subset of the database, which is defined and dedicated for particular users of the system. Multiple users in the system might have different views of the system. Each view might contain only the data of interest to a user or group of users.

Sharing of data and multiuser system

They allow many users to access the same database at the same time. This access is achieved through features called concurrency control strategies. It ensure that the data accessed are always correct and that data integrity is maintained.

Database Management Systems (DBMS)

A database management system is a collection of programs that manages a database structure and controls access to the database (and ultimately the data). The database is just one of those programs in the collection. The primary goal of a DBMS is to provide an environment that is both convenient and efficient for users to retrieve and store information.

The DBMS typically has many components that:

manages the sharing of data amongst multiple applications and/or users
ensures data consistency
add the ability to do ad hoc querying
are extensions to the manufactured components to add addition and customized access and usage (A custom developed API may be an example)

Database Design

A database design should:

define the expected use of the database
avoids redundant and repetitive data
completed in association with the Software Development LifeCyle (SLDC)
Completed using the Database Design Life Cycle (DBLC)

5 basic rules of good batabase:

Every Table or Entity requires a unique identifier to determine exact row of interest
Avoid redundent data storage
Avoid repetitive data sotrage
Do not include any calculated fields, or values that are directly derived from other fields.
Every cell in the database must have atomic values (a single value).

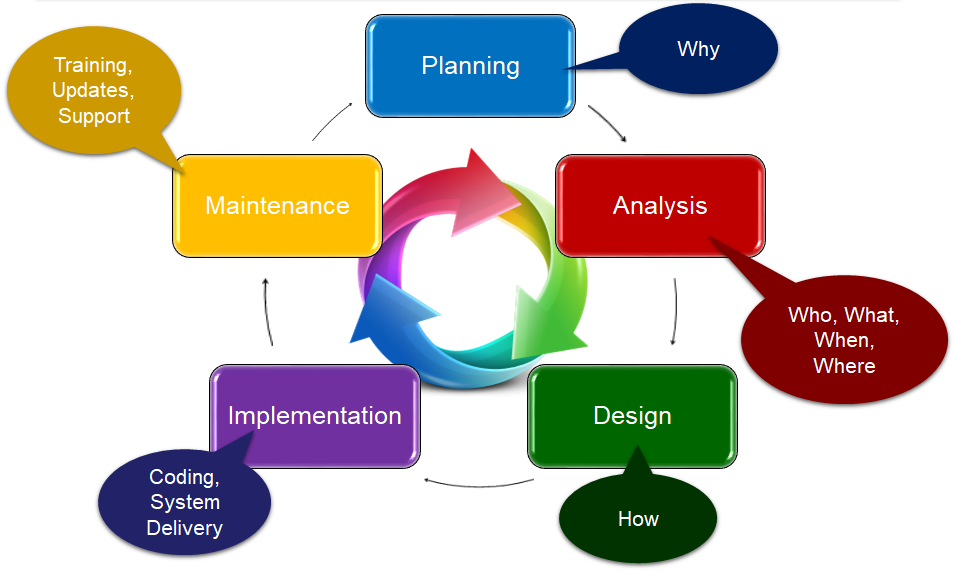

Software Development Life Cycle (SDLC)

SDLC #pic from http://dbs211.ca/courses/dbs211/Week01/index.html

SDLC

Stage	Desc
Planning	We have an idea! Why do we need this software, how will it help the organization? Who will champion this project? What are the goals or objectives of the software?
Analysis	Needs analysis: What does the software need to be successful? Should we build it? Do we have the right team to build it? Can we financially afford to built it? Do we have the right technologies available?
Design	Specifications, architecture, choice of languages, frameworks, diagrams, pseudo-code, scoping.
Implementation	Coding the software, creating the graphics, testing the software, actually creating the product, installation and delivery.
Maintenance and Support	Maintenance plan, on-going monitoring and review, what are the next steps, new versions? Training and on-going customer support

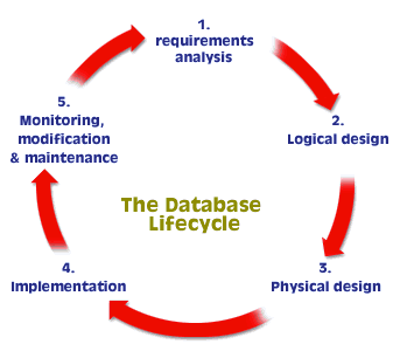

Database Life Cycle

DBLC

Stage
Requirements Analysis	What does the database need? What information do we need later? How is the database going to be used? What other applications will the database support?
Logical Design	Design Specifications, Data Modeling, Entity Relationship Diagrams, Data Types, Normalization,
Physical Design	Actual process of creating tables and database structure (SQL, DDL)
Implementation	Inserting or importing data, installation on live server, backup systems, and more
Monitoring, modification, and Maintenance	On-going backups, data archival, monitoring, additional queries as required

Key Terms

concurrency: the ability of the database to allow multiple users access to the same record without adversely affecting transaction processing

data element: a single fact or piece of information

data inconsistency: a situation where various copies of the same data are conflicting

data isolation: a property that determines when and how changes made by one operation become visible to other concurrent users and systems

data integrity: refers to the maintenance and assurance that the data in a database are correct and consistent

data redundancy: a situation that occurs in a database when a field needs to be updated in more than one table

database approach: allows the management of large amounts of organizational information

database management software: a powerful software tool that allows you to store, manipulate and retrieve data in a variety of ways

file-based system: an application program designed to manipulate data files

data elements: facts that represent real-world information

database: a shared collection of related data used to support the activities of a particular organization

database management system (DBMS): a collection of programs that enables users to create and maintain databases and control all access to them

table: a combination of fields

concurrency control strategies: features of a database that allow several users access to the same data item at the same time

data type: determines the sort of data permitted in a field, for example numbers only

data uniqueness: ensures that no duplicates are entered

database constraint: a restriction that determines what is allowed to be entered or edited in a table

metadata: defines and describes the data and relationshipsbetween tables in the database

read and write privileges: the ability to both read and modify a file

read-only access: the ability to read a file but not make changes

self-describing: a database system is referred to as self-describing because it not only contains the database itself, but also metadatawhich defines and describes the data and relationships between tables in the database

view: a subset of the database
